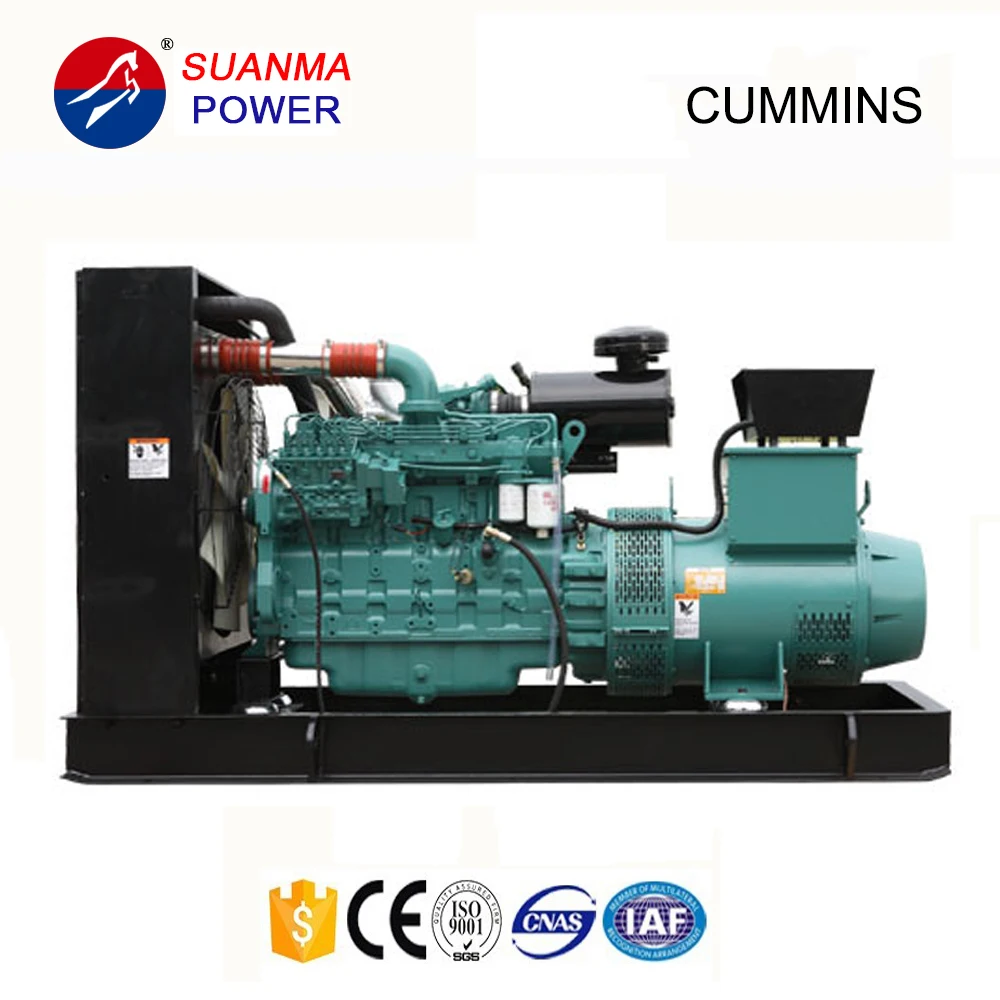

AC 3 phase 230V/400V 50Hz silent 250 kva diesel generator

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $10200.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SUANMA
Model Number:
SMCT
Output Type:
AC Three Phase
Speed:
1500/1800rpm
Frequency:
50/60HZ
Rated Power:
200KW/250KVA
Rated Voltage:
400/230V
Rated Current:
360A
Product Name:
250 kva diesel generator
Engine:
Foreign brand/Chinese brand
Alternator:
Stamford/Suanma/Other brand
Type:
Slient Type
Controller:
Smartgen/Deep sea/Other brand
Warranty:
12 Months
Keyword:
3 Phase Generator
OEM:
Yes
Function:
AMF ATS
Certificate:
ISO9001/CE
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic Film or Wooden case
Port
Shanghai/Ningbo/Tianjin
About Us

SINCE 1996

20 years, we focus on diesel generator sets of research and development and production.

Perfect test platform

High-quality test platform to ensure that every diesel generator set without fault factory.

Advanced production equipment

So that the appearance and quality of each diesel generator set is guaranteed.


Factory direct supply diesel generator 1600kw power withcummins diesel generator 2000kva generator
Diesel Engine Brand

20KW-2000KW

7KW-1800KW

68KW-560KW

220KW-2600KW

16KW-2400KW

480KW-1800KW

20KW-1100KW

220KW-900KW

30KW-300KW

Product Description
Technical parameters of diesel generator set   200KW / 250 KVA generator
Rated power
200KW/250KVA
RPM & Frequency
1500/50HZ
Standby power
220KW/275KVA
Power factor
0.8
Rated Voltage
400/230V
Phase
3
Fuel tank capacity
600L
Noise value
102±2db
Dimension
3000*980*1760mm
Weight
2600kg
Alternator Data
Brand
SUANMA POWER
Control system
AVR
Model
SMI-200-4
Insulation class
H
Capacity
250KVA
Protection Grade
IP23
The stator winding
Single layer winding
Temperature level
H
Effectiveness
96.2%
Voltage regulation rate
±1.0%


Standard configuration

Coupled with diesel engine (50HZ OR 60HZ):
1.24V DC start motor and storage battery
2.Brushless, Self-excited, AVR, insulation class H alternator(110V~480V OR 6300V,10500V)
3.40℃ radiator as standard, 50℃ is optional
4.Key start panel control system as standard, digital auto-start panel is optional
5.Unit of steel common base (including: unit vibration damping rubber pad)
6.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over-speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Optional configuration

1.ATS control cabinet
2.Water separator
3.Oil heater
4.Move the trailer
5.Fuel tank
6.Anti - condensation heater
7.Water jacket heater
8.Low noise box

Alternator Brand
STAMFORD
MARATHON
MECC ALTE
SIEMENS
LEROY-SOMER
ENGGA
SUANMA
ABB
Certifications
Customer visit
Our Service

Pledge:
The company will meet the needs of users for the purpose of long-term users with pure spare parts, technical advice, to guide the installation, free debugging, unit transformation and personnel training. After receiving the quality of customer feedback, within 24 hours to make a reply or sent after-sales service personnel, as soon as possible to reach the scene, so that users are not satisfied with the service does not stop.
Service system:
First, pre-sale service
Professional engineers to provide users with pre-sale technical advice and planning supporting guidance, such as unit selection, matching, room design, to answer the user in the course of the problems encountered and provide relevant technical guidance.
Second, the sale of services
I received the user immediately after receiving the notice to send a professional technical staff to the installation site to know the installation and commissioning of the unit, and with the user to do the acceptance work.
Third, after-sales service
1, to provide free room design, power distribution design;
2, free guidance installation, commissioning;
3, free of charge for the user's operation and maintenance personnel for technical training and consulting;
4, to guide maintenance, maintenance;
5, the end user to establish customer files, tracking services, regular inspection, life-long maintenance;
6, the company perennial to provide pure spare parts, and maintenance engineers at any time to provide you with technical assistance.

Note:
A, the warranty period: one year or cumulative operation of 1000 hours (whichever comes first), as a result of factory assembly negligence, or improper selection of design and raw materials and other reasons due to damage to parts or other units of the fault, The supplier is responsible for the warranty.

 B, diesel generators wearing parts, daily use of accessories, due to man-made errors, inadvertent damage caused by maintenance, are not covered in this warranty. All parts of the warranty period are provided at cost, provided by the service personnel to the customer site or in the factory factory to repair the unit, to normal use.

Packing & Delivery

FAQ

1. You are the factory or agents?
A: We are factory, established in 2001

2. What brand do you mainly diesel generator sets?
A: We are according to customer requirements can be customized customer wants diesel generator sets

3. What is your acceptable payment?
A: We can accept payment is T/T and L/C

4. How long is your delivery time?
A: Our delivery time is based on the number of orders and customer requirements to determine, the conventional type basically have ready

5. How long is your warranty?
A: One year or diesel generator running 1000 hours, whichever occurs first, and lifetime maintenance
