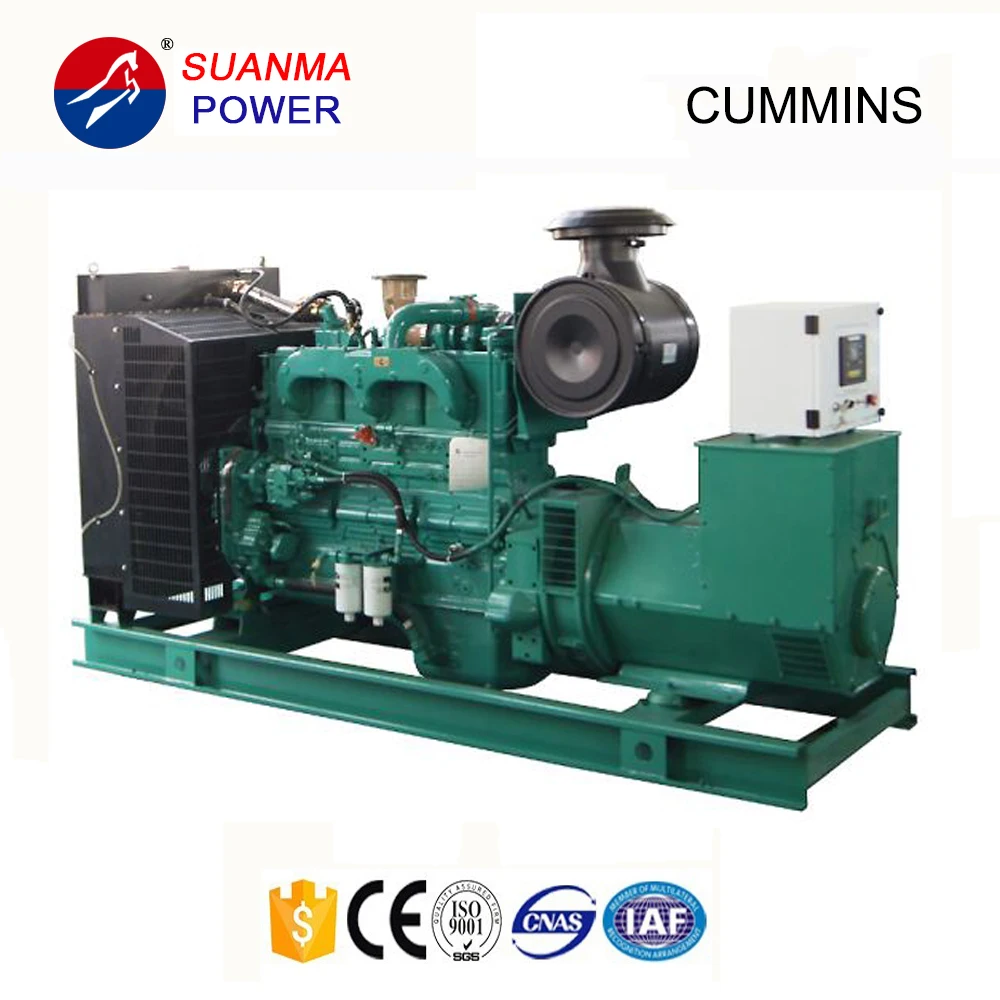

diesel genset 200kw / 250kva Engine ByCUMMIN NT855-GA

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $18500.00
  • >=5 Sets
    US $18200.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SUANMA
Model Number:
SMCK-200GF
Output Type:
AC Three Phase
Speed:
1500/1800rpm
Frequency:
50/60HZ
Rated Power:
200KW/250kva generator
Rated Voltage:
400/230V,480V,440V
Rated Current:
360A
Engine:
CMS-USA diesel generator
Alternator:
SUANMA/STAMFORD/MECCALTE/MARATHON
Type:
Open/Silent
Warranty:
12 Months/One year
Color:
Request by customer
Certificate:
ISO9001:2008 / CE
Name:
SUANMA
Function:
AMF ATS
Controller:
Deepsea/ComAp
Product Name:
200kw Diesel Genertor
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood boxes
plastic film
Port
shanghai
Lead Time :
10 days
About Us

SINCE 1996

20 years, we focus on diesel generator sets of research and development and production.

Perfect test platform

High-quality test platform to ensure that every diesel generator set without fault factory.

Advanced production equipment

So that the appearance and quality of each diesel generator set is guaranteed.

Diesel engine brand optional

Factory direct supply diesel generator 200kw / 250 kva
Product Description
Technical parameters of diesel generator set   SMCK-200GF
Rated power
200KW/250KVA
RPM & Frequency
1500/50HZ
Standby power
220KW/275KVA
Power factor
0.8
Rated Voltage
400/230V
Phase
3
Fuel tank capacity
400L
Noise value
101±2db
Dimension
300*980*1760mm
Weight
2600kg
Diesel generator  engine technical parameters
Engine brand
CMS-USA
Air intake mode
Turbocharged
Engine Model
NT855-GA
Cylinders
6
Configuration
4 cycle ,6 cylinders in "L"
Bore*Stroke
140*152mm
Displacement (Liter)
14
Start the system
DC 24V
Compression ratio
14.5:1
Cooling system
water-cooling
Maximum engine power
254KW/1500RPM
Lubricating oil system
Pressure lubrication
Lubricating oil capacity
38.6L
Lubricating oil brand
15W40-CH
Fuel consumption
202g/kw.h
Oil consumption
0.3 g/kw.h
Alternator Data
Brand
SUANMA POWER
Control system
AVR
Model
SMI-250-4
Insulation class
H
Capacity
315KVA
Protection Grade
IP23
The stator winding
Single layer winding
Temperature level
H
Effectiveness
96.2%
Voltage regulation rate
±1.0%


Diesel Generator Standard configuration

Coupled with diesel engine (50HZ OR 60HZ):
1.24V DC start motor and storage battery
2.Brushless, Self-excited, AVR, insulation class H alternator(110V~480V OR 6300V,10500V)
3.40℃ radiator as standard, 50℃ is optional
4.Key start panel control system as standard, digital auto-start panel is optional
5.Unit of steel common base (including: unit vibration damping rubber pad)
6.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over-speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)


Diesel Generator Optional configuration

1.ATS control cabinet
2.Water separator
3.Oil heater
4.Move the trailer
5.Fuel tank
6.Anti - condensation heater
7.Water jacket heater
8.Low noise box

Alternator Brand
STAMFORD
MARATHON
MECC ALTE
SIEMENS
LEROY-SOMER
ENGGA
SUANMA
ABB
Certifications
Customer visit
Our Service

Pledge:
The company will meet the needs of users for the purpose of long-term users with pure spare parts, technical advice, to guide the installation, free debugging, unit transformation and personnel training. After receiving the quality of customer feedback, within 24 hours to make a reply or sent after-sales service personnel, as soon as possible to reach the scene, so that users are not satisfied with the service does not stop.
Service system:
First, pre-sale service
Professional engineers to provide users with pre-sale technical advice and planning supporting guidance, such as unit selection, matching, room design, to answer the user in the course of the problems encountered and provide relevant technical guidance.
Second, the sale of services
I received the user immediately after receiving the notice to send a professional technical staff to the installation site to know the installation and commissioning of the unit, and with the user to do the acceptance work.
Third, after-sales service
1, to provide free room design, power distribution design;
2, free guidance installation, commissioning;
3, free of charge for the user's operation and maintenance personnel for technical training and consulting;
4, to guide maintenance, maintenance;
5, the end user to establish customer files, tracking services, regular inspection, life-long maintenance;
6, the company perennial to provide pure spare parts, and maintenance engineers at any time to provide you with technical assistance.

Note:
A, the warranty period: one year or cumulative operation of 1000 hours (whichever comes first), as a result of factory assembly negligence, or improper selection of design and raw materials and other reasons due to damage to parts or other units of the fault, The supplier is responsible for the warranty.

 B, diesel generators wearing parts, daily use of accessories, due to man-made errors, inadvertent damage caused by maintenance, are not covered in this warranty. All parts of the warranty period are provided at cost, provided by the service personnel to the customer site or in the factory factory to repair the unit, to normal use.

Packing & Delivery

FAQ

1. You are the factory or agents?
A: We are factory, established in 2001

2. What brand do you mainly diesel generator sets?
A: We are according to customer requirements can be customized customer wants diesel generator sets

3. What is your acceptable payment?
A: We can accept payment is T/T and L/C

4. How long is your delivery time?
A: Our delivery time is based on the number of orders and customer requirements to determine, the conventional type basically have ready

5. How long is your warranty?
A: One year or diesel generator running 1000 hours, whichever occurs first, and lifetime maintenance
